High power amplifier:
1.8ohm Stereo Power(RMS) :2200WX4
2.4ohm Stereo Power(RMS) 4000WX4
3.2ohm Stereo Power(RMS) 5000WX4
Features:
1: Input and output connectors
In order to improve the reliability of the machine work, all the input and output are use imported original Neutrik ,it is full range of Semiconductor (formerly Motorola) Gold sealed tube output.
2: Excellent heat dissipation system:
High efficiency double short duct fins copper strip, maintaining the output transistor in the same temperature, the cooling performance is several times than the aluminum radiator.
If you are interested.please do not hesitate contact me.thank you!
1.8ohm Stereo Power(RMS) :2200WX4
2.4ohm Stereo Power(RMS) 4000WX4
3.2ohm Stereo Power(RMS) 5000WX4
Features:
1: Input and output connectors
In order to improve the reliability of the machine work, all the input and output are use imported original Neutrik ,it is full range of Semiconductor (formerly Motorola) Gold sealed tube output.
2: Excellent heat dissipation system:
High efficiency double short duct fins copper strip, maintaining the output transistor in the same temperature, the cooling performance is several times than the aluminum radiator.

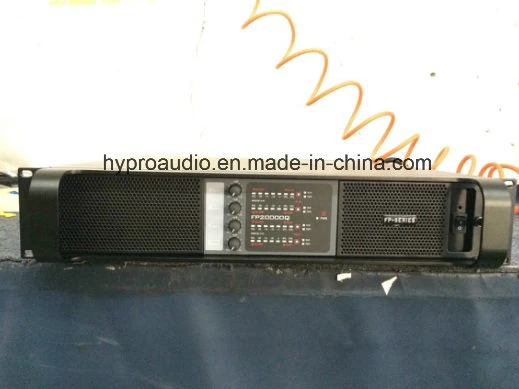

| Model | FP20000Q |
| Output Power | 20-20kHz, 1W with 1 khz |
| 8ΩStereo Power(RMS) | 2200WX4 |
| 4ΩStereo Power(RMS) | 4000WX4 |
| 2ΩStereo Power(RMS) | 5000WX4 |
| 8ΩBridged Power(RMS) | 8000WX2 |
| 4ΩBridged Monon Power | 10000WX2 |
| FREQUENTY RESPONSE | 20Hz-25kHz +-0.5dB |
| THD+N(Rated power | 4Ω/KHz)%:<0.1% |
| Signal Noise Ration(dB) | 110dB |
| Damping coefficient | 1000 |
| Input gain | 23,26,29,32,35,38,41,44dB |
| Input connectors | Combo XLR type,3pin(NEUTRIK) |
| Link Connectors | XLR type,3pin male(NEUTRIK) |
| Input Impedance | 20kΩBalanced /10kΩUnbalanced/10kΩUnbalanced |
| Output Connectors | Speakon Connectors(NEUTRIK) (NEUTRIK) |
| Protection | Short circuit, open circuit, thermal, overload DC, super audio and other protective devices |
| Power Requirement | 200-240V~50-60Hz |
| Minimun power-up voltage | 180-260V~50-60Hz |
| Dimension | 483x377x88mm |
| Packing Dimension | 575x555x140mm |
| Weight(net) | 18Kg |
| Gross weight | 21.5kg |
If you are interested.please do not hesitate contact me.thank you!
